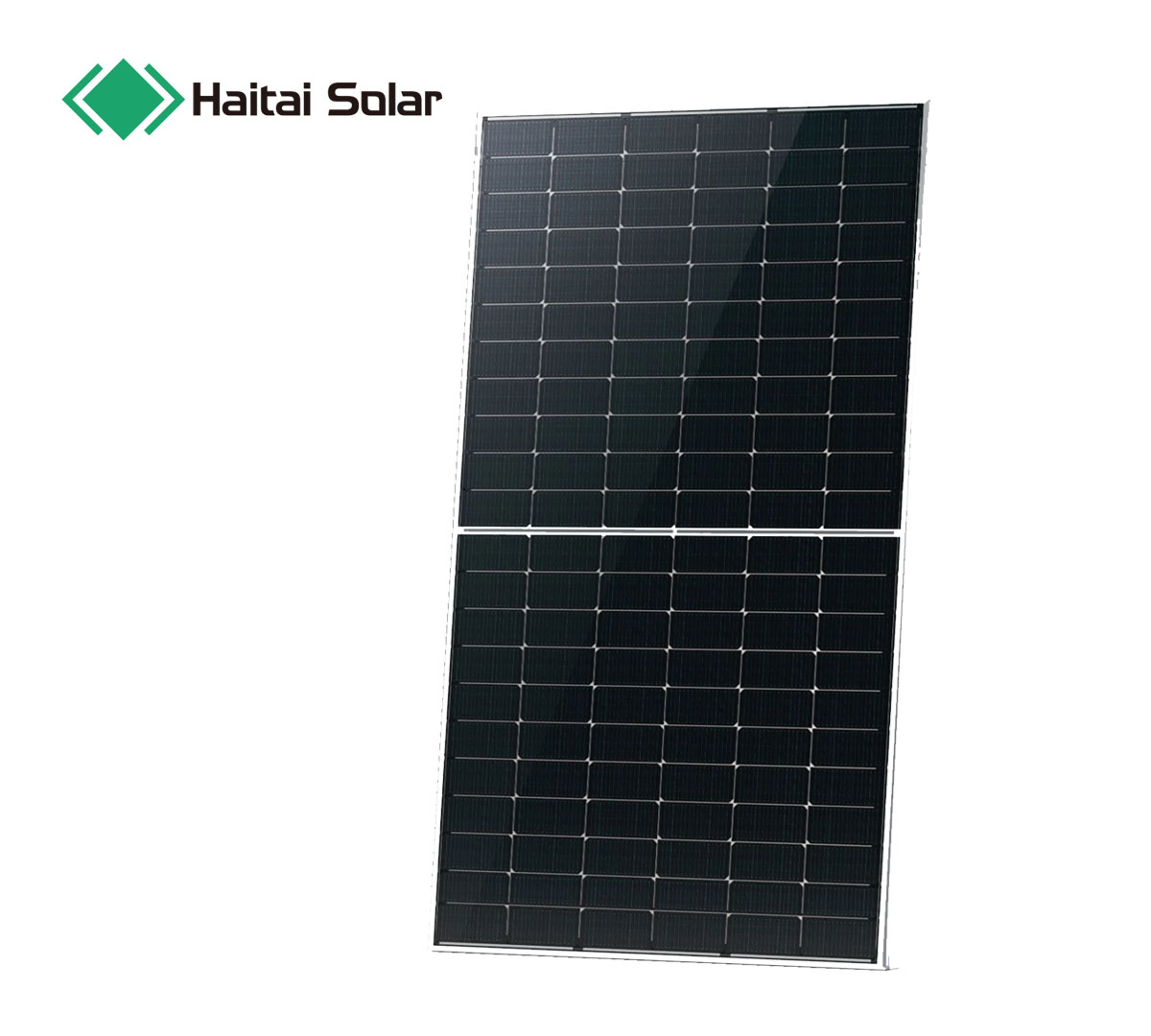

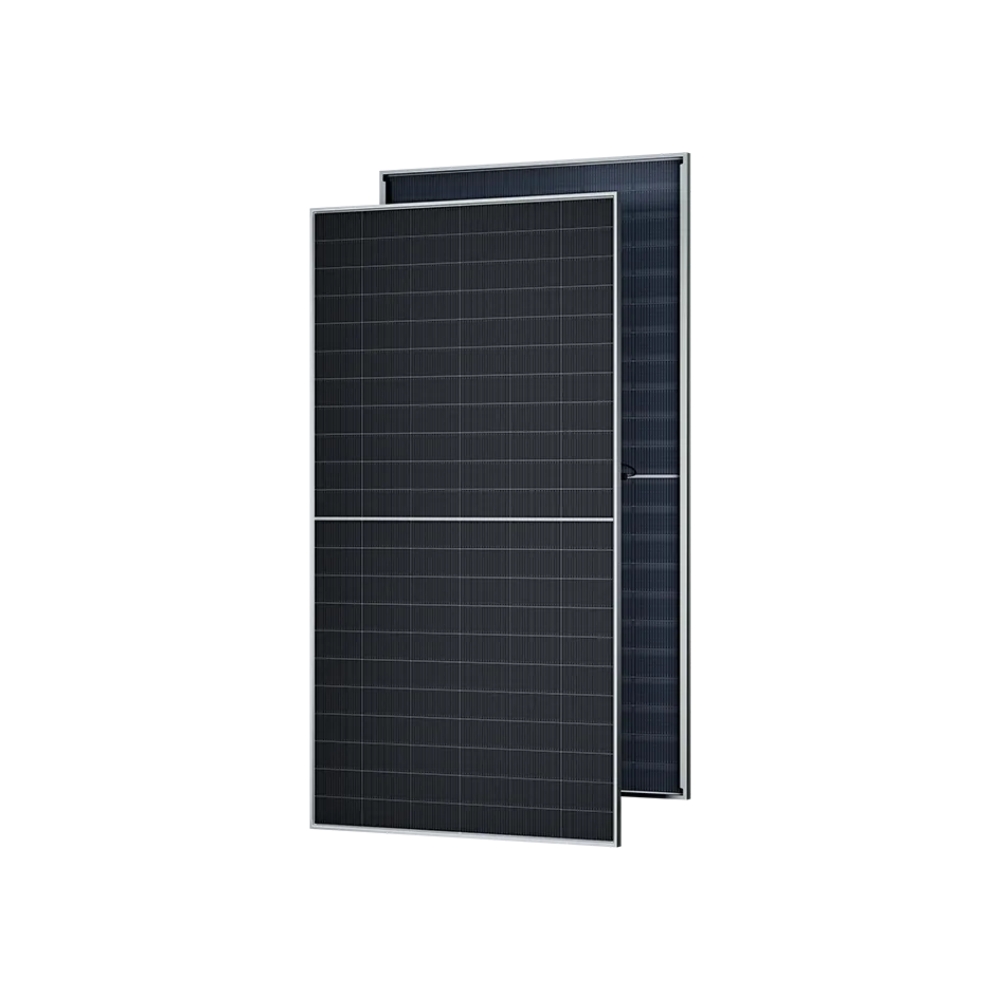

620W Haitai Bifacial PV Module/Panel (Tier 1)
The 620W Haitai Bifacial PV Module/Panel (Tier 1) is a Haitai bifacial PV module with maximum power (pmax) of 620W; module efficiency 22.95%; warranty: 15 years product warranty; 30 years power performance warranty at 87.4%.
View Specsheet
Additional information
| Weight | 32.5 kg |
|---|---|
| Brand |
Haitai |
| Product warranty |
15 years product warranty; 30 years power performance at 87.4%; R2.35/W pallet, R2.30/W container |
| Power |
620W |
| Performance Warranty |
30 years at 87.4% |
| Efficiency |
22.95% |
| Dimension |
2382x1134x30mm |
| Weight |
32.5 kg |
| Maximum Power (Pmax) |
620W |
| Open Circuit Voltage (Voc) |
48.37V |
| Short Circuit Current (Isc) |
16.02A |
| Voltage at Maximum Power (Vmp) |
40.92V |
| Current at Maximum Power (Imp) |
15.16A |
| Module Efficiency |
22.95% |
| Operating Temperature |
-40 deg C ~ +85 deg C |
| Maximum System Voltage |
1000/1500V |
| Dimensions |
2382 x 1134 x 30mm |
| Weight |
32.5kg |
| Warranty |
15 years product warranty; 30 years power performance warranty at 87.4% |
