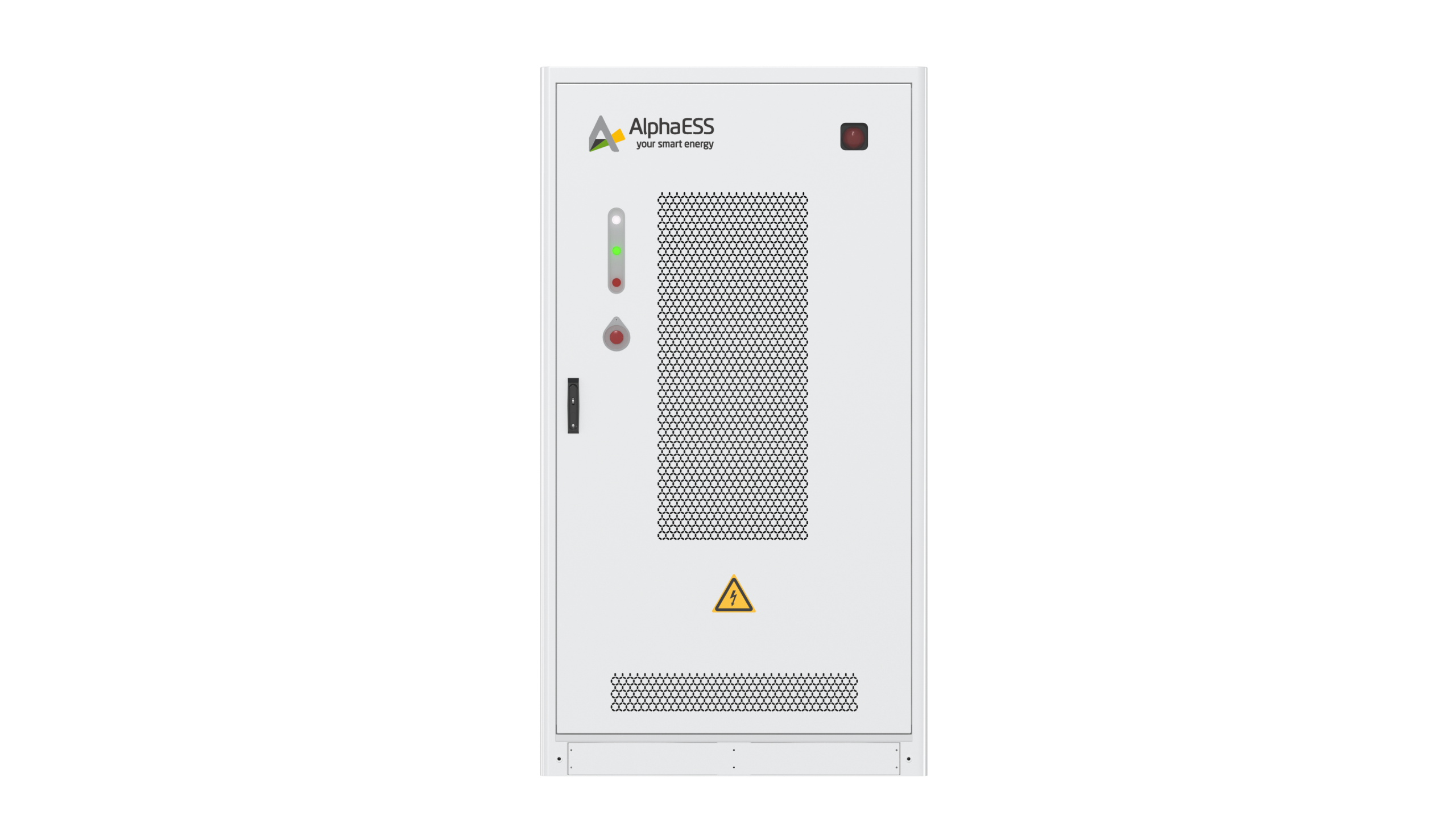

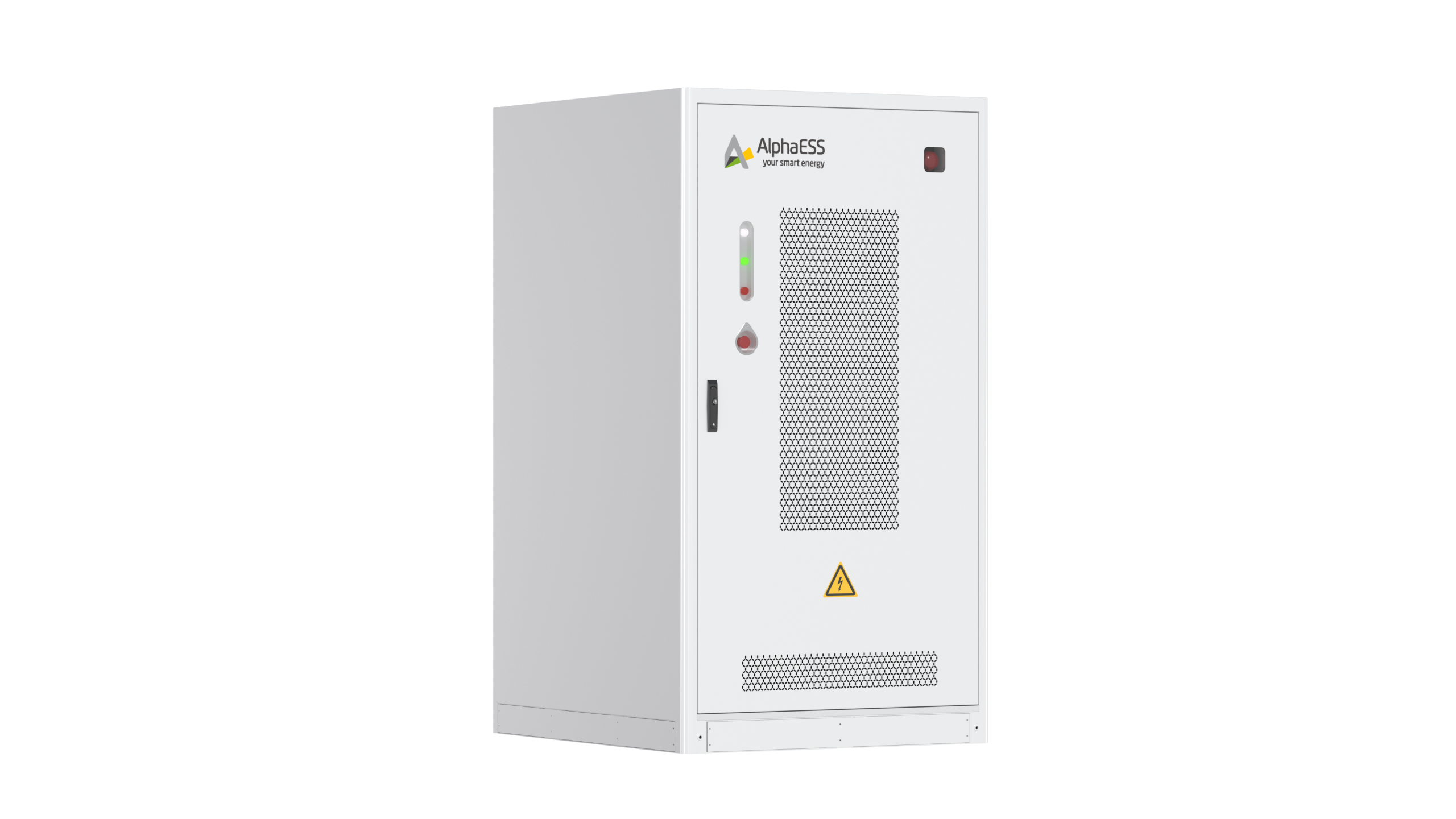

H50 Cabinet Storion-H50-G3 (5 Pack) 120.5kWh
The H50 Cabinet Storion-H50-G3 (5 Pack) 120.5kWh is a Alpha ESS battery cabinet with nominal output power of 50 kW; max. input power 75 kW; max. efficiency 97.8% & 97.2%; warranty: 5 Years Product Warranty, 10 Years Battery Warranty.
View Specsheet
Additional information
| Brand |
Alpha ESS |
|---|---|
| Product warranty |
5 years module swop out warranty |
| Specifications H30-G3 |
H50-G3 |
| System Capacity |
120.5 kWh |
| Standard Battery Rack |

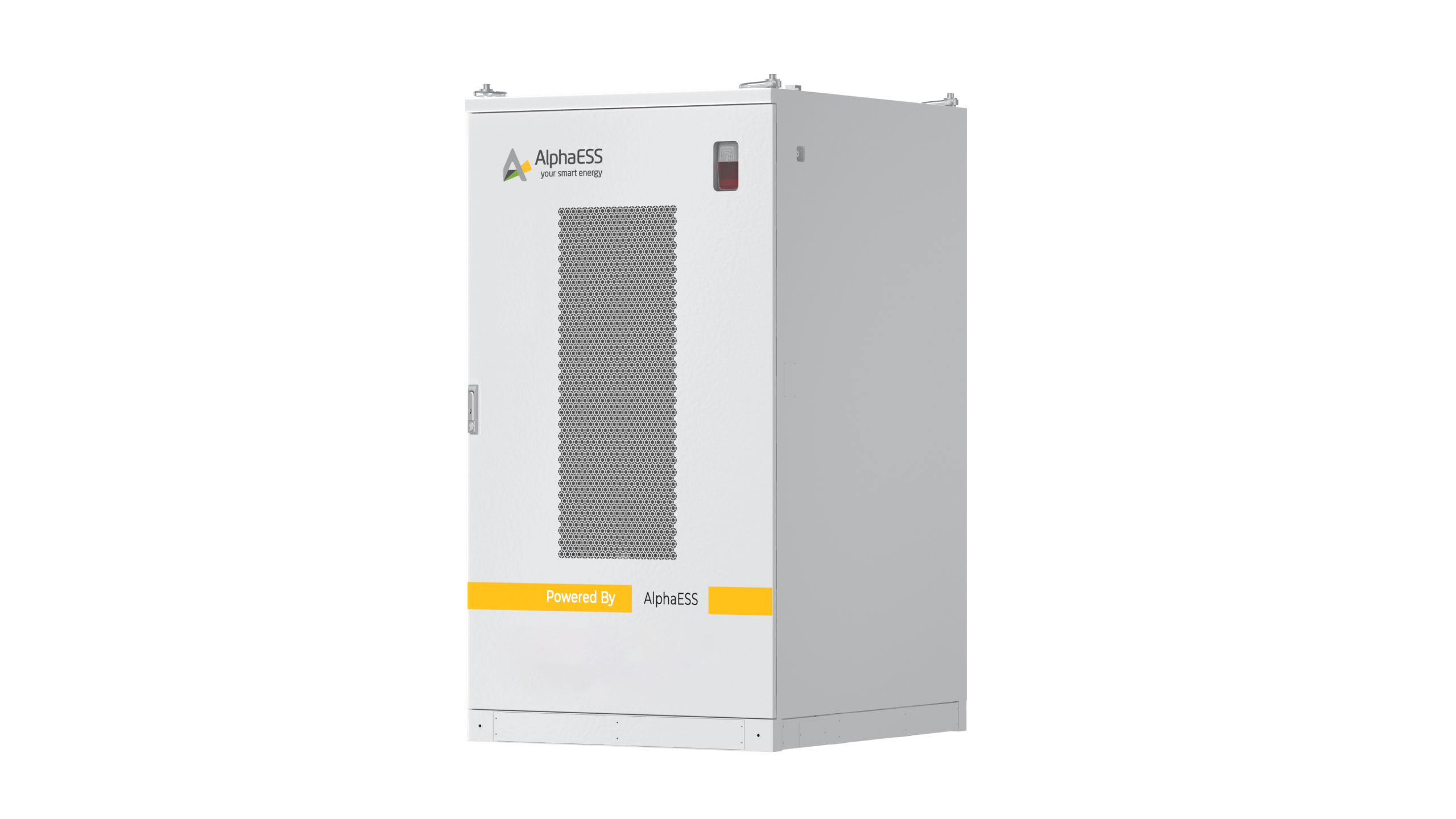

1 (Max support 2 battery racks, extra battery cabinet is needed.) |
| Warranty |
5 Years Product Warranty, 10 Years Battery Warranty |
| Max. Input Power |
75 kW |
| Start-up Voltage |
210 V |
| MPPT Voltage Range |
330 ~ 850 V |
| Number of MPPT |
4 |
| Number of Strings per MPPT |
2 |
| Max. Input Current |
40 A / 40 A / 40 A / 40 A |
| Max. Short-Circuit Current |
50 A / 50 A / 50 A / 50 A |
| Nominal Output Power |
50 kW |
| Max. Input Apparent Power |
80 kVA |
| Nominal Grid Voltage |
3L / N / PE , 220 V / 380 V; 230 V / 400 V; 240 V / 415 V |
| Nominal Grid Frequency |
50 / 60 Hz (+/- 5 HZ) |
| Rated Grid Output Current |
75.8 A |
| Max. THD of Current |
< 3% |
| AC Power Factor |
0.8 leading … 0.8 lagging |
| Max. Output Apparent Power |
50 kVA |
| Nominal Output Voltage |
3L / N / PE , 220 V / 380 V; 230 V / 400 V; 240 V / 415 V |
| Max. Output Current |
75.8 A |
| Max.THD of voltage |
< 3% |
| Overload |
150%, 10 s |
| Max. Efficiency |
97.8% & 97.2% |
| BAT Charged/Discharged to AC Max. Efficiency |
92% |
| Dimensions (W x D x H) |
1,120 x 1,300 x 2,050 mm |
| Battery Modules Connection |
5 in series |
| Weight |
1,700 kg (with 5*M77314-S) |
| Corrosion Protection Class |
C4 |
| Ingress Protection |
IP55 |
| Noise Emission |
65 dB @ 1m |
| Operating Ambient Temperature Range |
-30 deg C ~ 50 deg C(PCS > 45 deg C derating) |
| Operating Humidity Range |
0% ~ 90% (No Condensation) |
| Max. operating Altitude |
3,000 m / 9,842 ft (> 3,000 m derating) |
| Fire-fighting System |
Aerosol + Smoke / Temperature Detection |
| Cooling Method |
HVAC |
| Communication |
RS485, CAN, Ethernet, Modbus TCP |
| Dispatching Protocol |
Modbus TCP, API |
| Compliance |
IEC 61000-2/-4, IEC 62109, EN 50549, VDE 4105,VDE 4110, AS4777, NRS 097, IEC 62477, UN38.3 |
