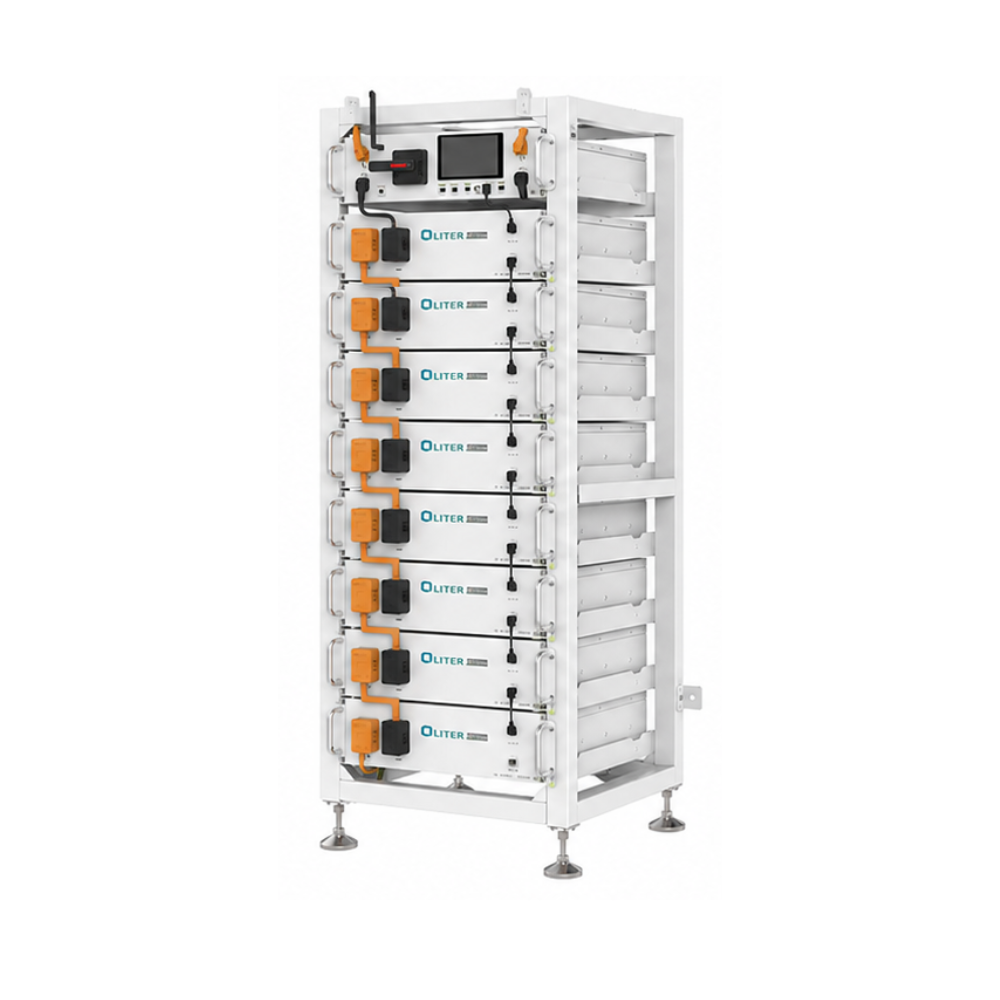

Oliter 40.96kWh High Voltage Battery Set (1 Battery Rack + 1 Controller + 8 High Voltage Batteries)
The Oliter 40.96kWh High Voltage Battery Set (1 Battery Rack + 1 Controller + 8 High Voltage Batteries) is a Oliter high voltage battery set with system nominal capacity (kwh) of 40.96; cycle life 25 +/- 2 deg C, 0.5C / 0.5C, EOL70% > 6000.
View Specsheet
Additional information
| Brand |
Oliter |
|---|---|
| Product warranty |
10 years or 6000 cycles swop out warranty |
| Power |
40.96kWh |
| Kind |
High Voltage Battery Set |
| Specifications |
40KWH |
| Installation Mode |
Racked |
| Battery Type |
LifePO4 (LFP) |
| Module Energy (kWh) |
5.12 |
| Module Nominal Voltage (V) |
51.2 |
| Module Capacity (Ah) |
100 |
| System Model |
OHR 40-100 |
| Battery Module Qty InSeries Optional |
8 |
| System Nominal Voltage (V) |
409.6 |
| System Operating Voltage (V) |
371.2 ~ 454.4 |
| System Nominal Capacity (kWh) |
40.96 |
| Usable Capacity (kWh) |
32.77 |
| Dimension (mm) |
580×584.5×1578 |
| Weight (Kg) |
435.1 |
| Recommended Charge/ Discharge Current (A) |
50 |
| Communication |
CAN |
| Ingress Protection |
IP20 |
| Altitude |
< S2000m |
| Cycle Life |
25 +/- 2 deg C, 0.5C / 0.5C, EOL70% > 6000 |
| Monitoring Parameters |
System voltage, Current, cell voltage, cell temperature, module temperature |
| SOC |
Intelligent algorithm |
| Working Temperature |
0 deg C~45 deg C Change -10 deg C~55 deg C Dishange |
| Storage Temperature |
0~35 deg C |
