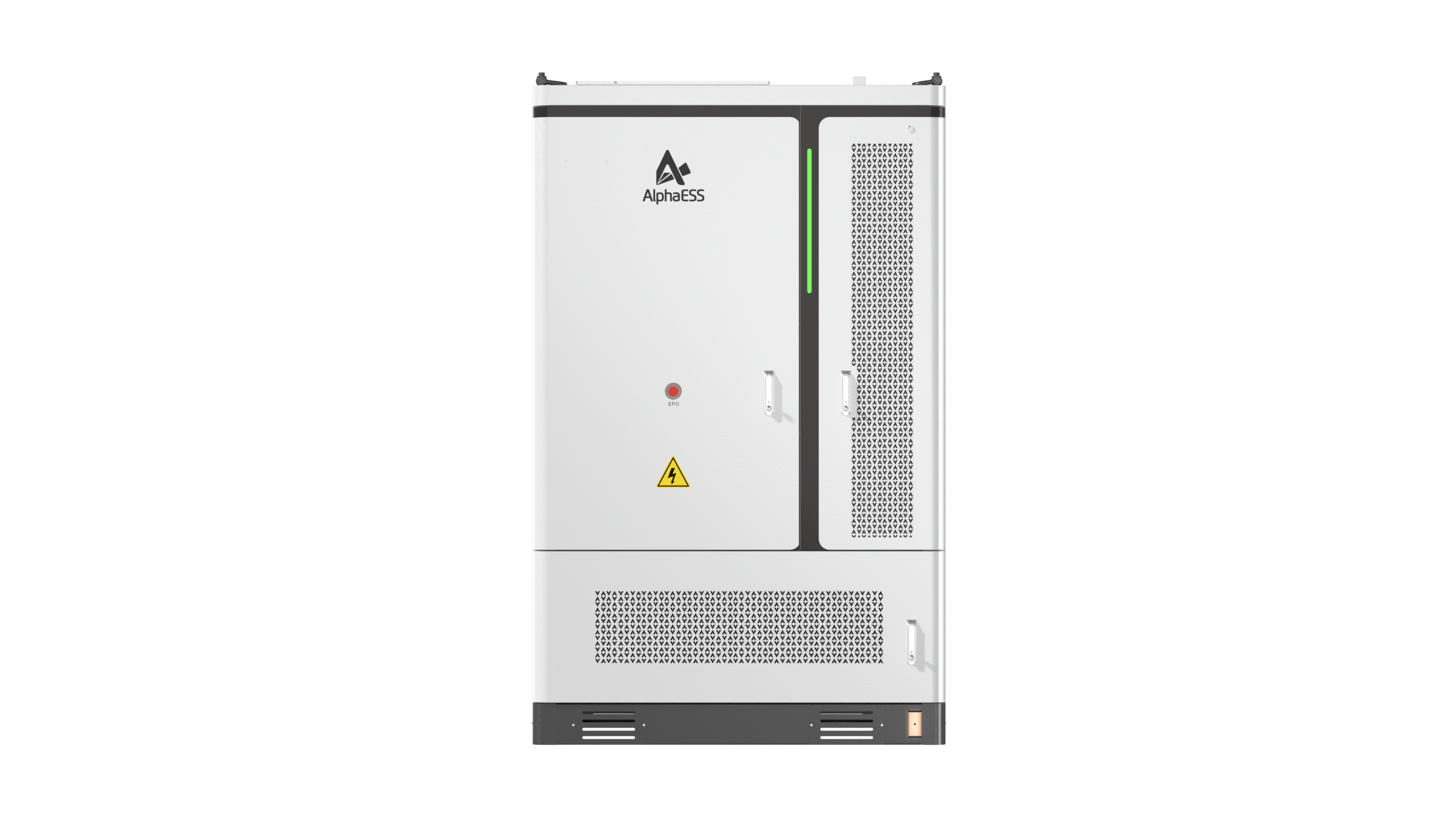

TB125 Cabinet Storion-LC-TB125kW/261kWh Battery Cabinet
The TB125 Cabinet Storion-LC-TB125kW/261kWh Battery Cabinet is a Alpha ESS battery cabinet with energy capacity of 261.2 kWh per Cabinet; max. output power 137.5 kVA; max. efficiency 97%; warranty: 5 Years Product Warranty, 10 Years Battery Performance Warranty.
View Specsheet
Additional information
| Brand |
Alpha ESS |
|---|---|
| Product warranty |
5 years module swop out warranty |
| Battery Chemistry |
LiFePO4 |
| Energy Capacity |
261.2 kWh per Cabinet |
| Depth of Discharge (DoD) |
100% (On-Grid), 90% (Off-Grid) |
| Warranty |
5 Years Product Warranty, 10 Years Battery Performance Warranty |
| Nominal AC Power |
125 kVA |
| Max. Output Power |
137.5 kVA |
| Battery Voltage Range |
630 V ~ 950 V |
| Nominal Grid Voltage |
400 V (+/-15%), 3L/N/PE |
| Nominal Grid Frequency |
50/60 Hz (+/-5 Hz) |
| Backup Switch Time |
< 20ms |
| Max. Efficiency |
97% |
| Dimensions |
(1003+400) x 1500 x 2482 mm |
| Battery Modules Connection |
5 Modules in Series |
| Weight |
3.2 t |
| Ingress Protection |
IP55 |
